SUSPENDED CEILING GRID SYSTEM - DIFFERENT COLOR - TILES NOT INCLUDED

Each Selection of Grid Package will have the required Things which you may need for 10 Square Meter Area.

(TILES NOT INCLUDED WITH THESE PACKAGES)

• CMC CROSS TEE SECTION 1200MM x 24MM
• CMC CROSS TEE SECTION 600MM x 24MM
• CMD MAIN TEE RUNNER SECTION 2400MM x 24MM
• ANGLE BRACKET
• PERIMETER ANGLE TRIM 2400
• GALVANISED WIRE ROLLS

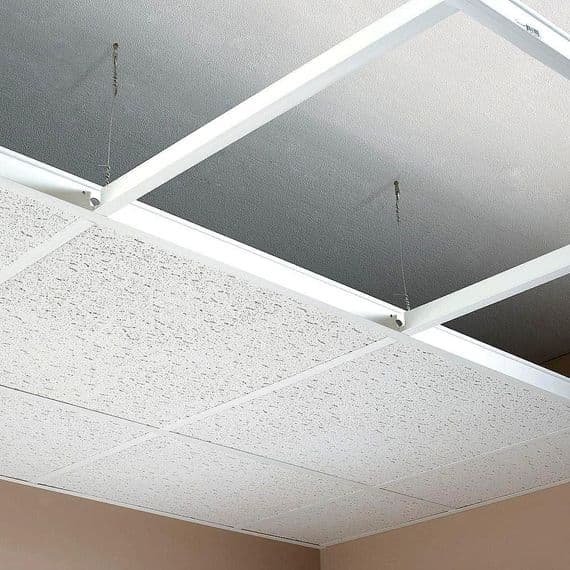

A typical suspended or false ceiling gridwork is made up from a combination of metal interlocking sections connected together to form the openings for ceiling tiles. The metal channels are formed in the shape of an upside down ‘T’ which is usually finished with a white paint to match the ceiling tiles insitu. The T bars are supported at various intervals by a suspension mechanism, usually galvanised wire. The ceiling is usually supported around the perimeter by an ‘L’ shaped metal section, referred to as edge trim.

*Typical construction of a 600 x 600mm lay in suspended ceiling.

1. Main Runner 2400mm
2. Cross Tee 1200mm
3. Cross Tee 600mm
4. Suspension Wire
5. Edge/Perimeter Trim 2400mm
